Vertical blind

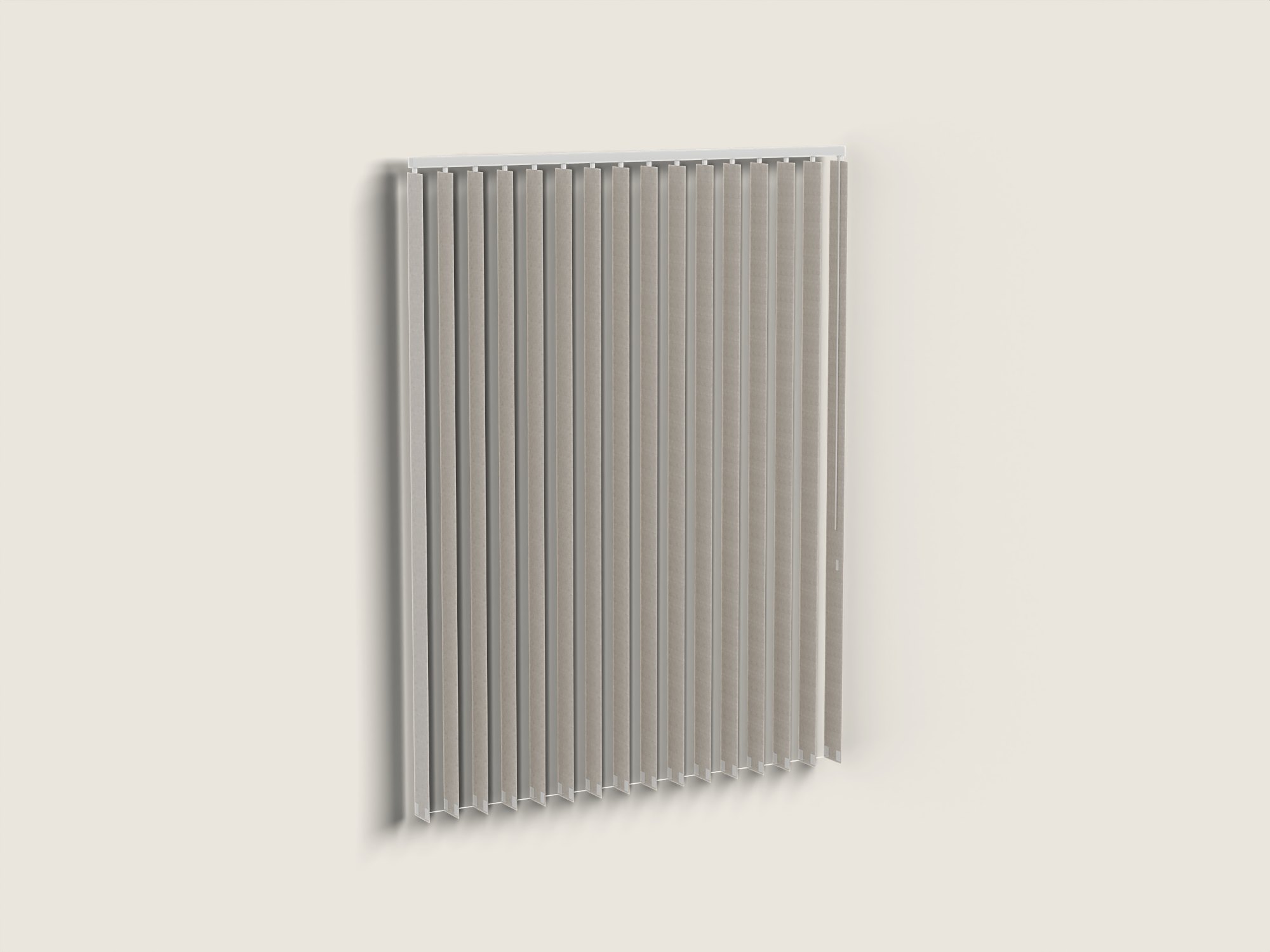

Vertical blind 1800 × 2400 with dimout vanes of 89 or 127 mm on a 40 × 35 headrail, stacking to the left.
Variant
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 1800 |
| Height | 2400 |
| Headrail | 40 × 35 |
| Vane 127 · spacing / vanes / stack | 112 / 16 / 212 |
| Vane 89 · spacing / vanes / stack | 76 / 24 / 308 |
What’s in the file
- Tags: track, fabric (vanes), hardware (carriers, weights, chain, controls), 2D_symbol, ceiling (display only)
- States: closed / open / stacked
- Scenes: Thumbnail, Closed, Open, Stacked, Plan, Section, Section detail
- Fabric: dimout (generic material)
- Light version for large projects (836–1172 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Stack on the left: 212 (127 mm vanes) or 308 (89 mm vanes) – 12 per vane + 20.
- Closed vane angle 80°, weights in the pocket, connecting chain at the bottom (modelled values).
- Origin: centre of headrail top (ceiling).
