Honeycomb pleated blind

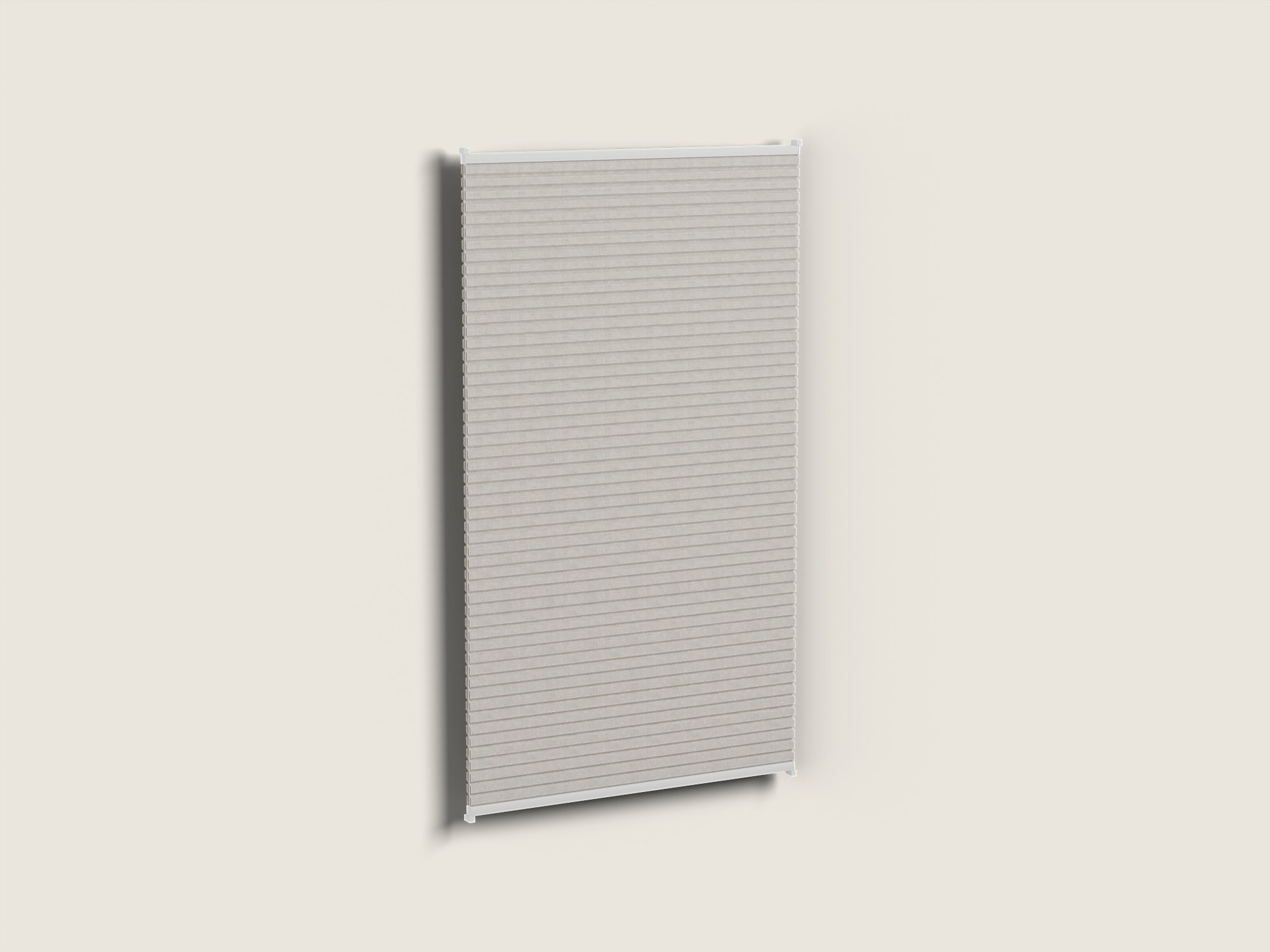

Tensioned honeycomb pleated blind 800 × 1400 for mounting on the sash, dimout fabric, top-down / bottom-up with handles.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Width | 800 |
| Height | 1400 |
| Rails | 20 × 20 |
| Cell height × depth | 25 × 20 |
| Fabric height | 1336 |
| Clamp brackets | 4 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol, ceiling (display only)
- States: closed / open
- Scenes: Thumbnail, Closed, Open, Plan, Section, Section detail
- Fabric: dimout (generic material)
- Light version for large projects (1600 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Mounted with clamp brackets on the sash / glazing bead.
- Stack 1.5 per cell (modelled value).
- Origin: centre, top of the upper clamp brackets.
