ZNM-023 · Curtains
Panel track curtain

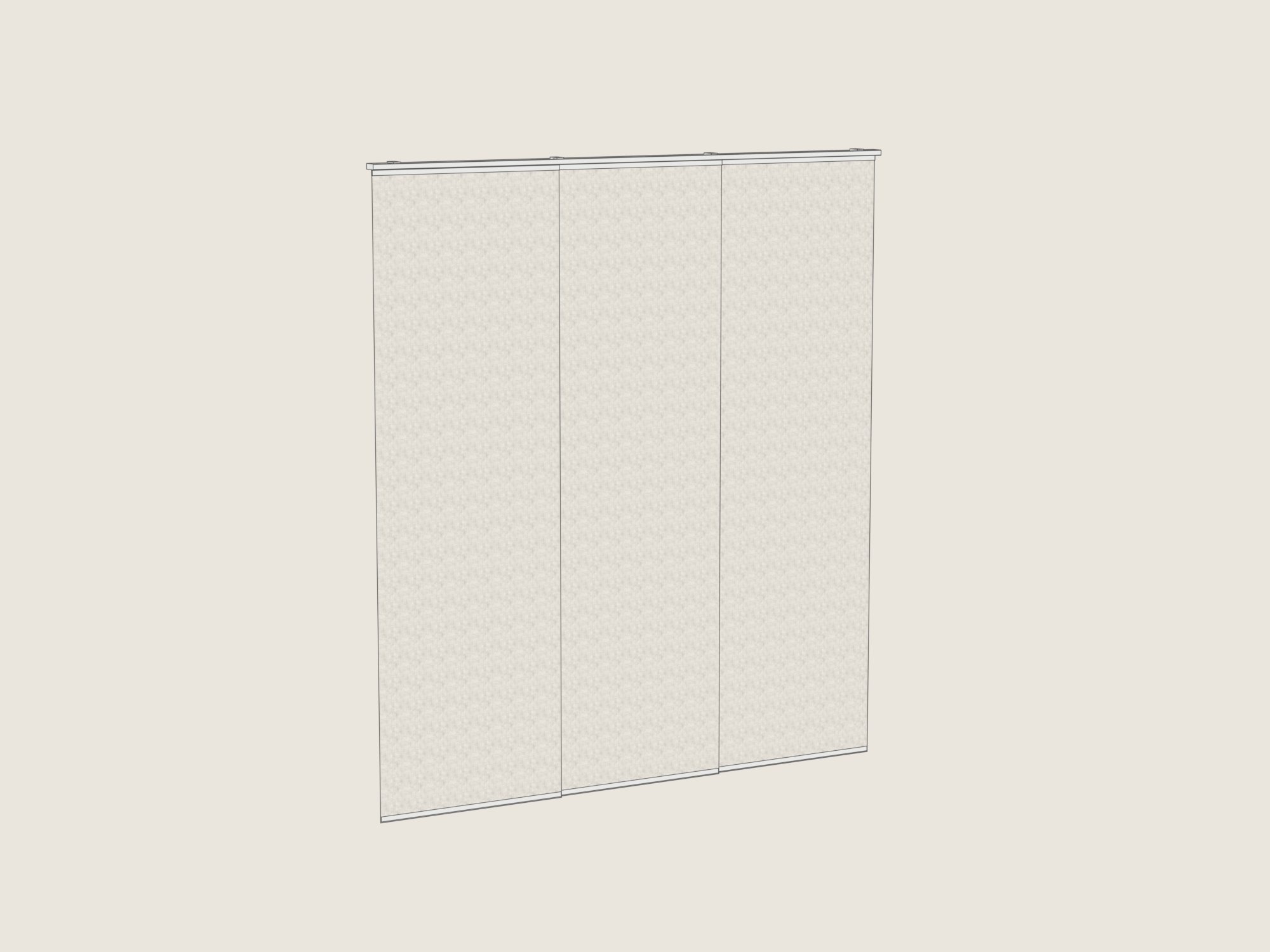

Ceiling-mounted panel track with 3, 4 or 5 runs and flat semi-transparent panels of 600 or 800 mm, stacking to one side.
Variant
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Room height | 2600 |
| Drop | 2546 |
| Run pitch | 18 |
| Track height | 22 |
| Panel overlap | 50 |
| Floor clearance | 15 |
| Panel carrier / weight bar | 20 × 8 / 20 × 6 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol (plan symbol at floor level), ceiling (display only)
- State tags: closed / open
- Scenes: Thumbnail, Closed, Open, Plan, Section, Section detail
- Fabric: semi-transparent (generic material)
- Light version for large projects (120–176 triangles)
- Formats: SKP (detail) · light SKP · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Track width = runs × 18 + 8 (62 / 80 / 98 for 3 / 4 / 5 runs).
- Track length = runs × panel width − overlaps of 50 (2300 / 2250 / 2800).
- Stack = one panel width, on the left side.
- Origin: centre of track, ceiling underside.
