ZNM-021 · Curtains
Tab-top curtain, double rod

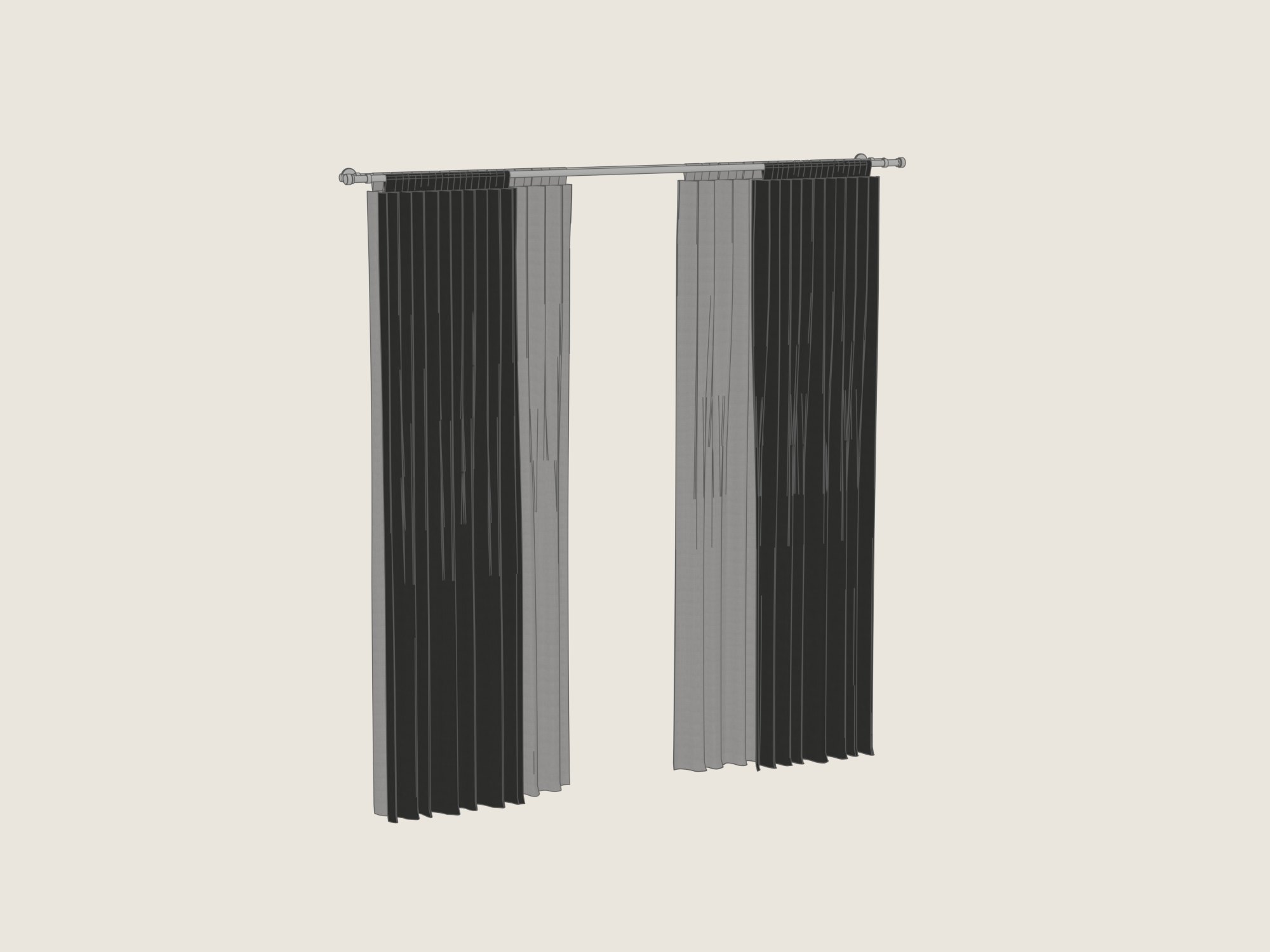

Tab-top curtains on a double rod Ø25: sheer on the window side, blackout on the room side, resting on the floor, with irregular drape.
Download
Thanks – your download is starting.If this model saves you time, you can support the project – Millimetric3D is just getting started.Support the project
No account needed. The SKP opens directly in SketchUp. The ZIP holds all formats (light SKP, FBX/OBJ with textures) and a readme with dimensions and tags.Saves you time? Support the projectLicence: royalty-free – client work, plans and renderings. No resale of the model files. Licence. Generic model, not a replica of a specific product.
Dimensions (mm)
| Rod length | 2400 |
| Rod diameter | Ø25 (2 rods) |
| Rod axis height | 2450 |
| Rear rod to wall | 80 |
| Rod axis distance | 100 |
| Drop | 2398 |
| Max. fabric depth per curtain | 95 |
What’s in the file
- Tags: track, fabric, hardware, 2D_symbol (plan symbol at floor level), ceiling (display only)
- State tags: front_closed / front_open / front_relaxed, back_closed / back_open / back_relaxed
- Scenes: Thumbnail, Closed, Open, Open relaxed, Day (sheer closed, blackout relaxed), Plan, Section, Section detail
- Fabrics: ZNT-101 voile sheer white (back), ZNT-114 coated blackout anthracite (front); rods brushed steel
- Formats: SKP (detail) · FBX · OBJ (+MTL, textures) – FBX/OBJ: mesh only, no tags or components
Planning notes
- Double wall bracket: rear rod 80 from the wall, front rod 100 in front of it.
- Open relaxed: blackout 28 % / sheer 40 % per side.
- Hem rests on the floor (+40).
- Origin: centre, wall face, rod axes.
- Matching fabrics: sheer ZNT-101, blackout ZNT-114.
